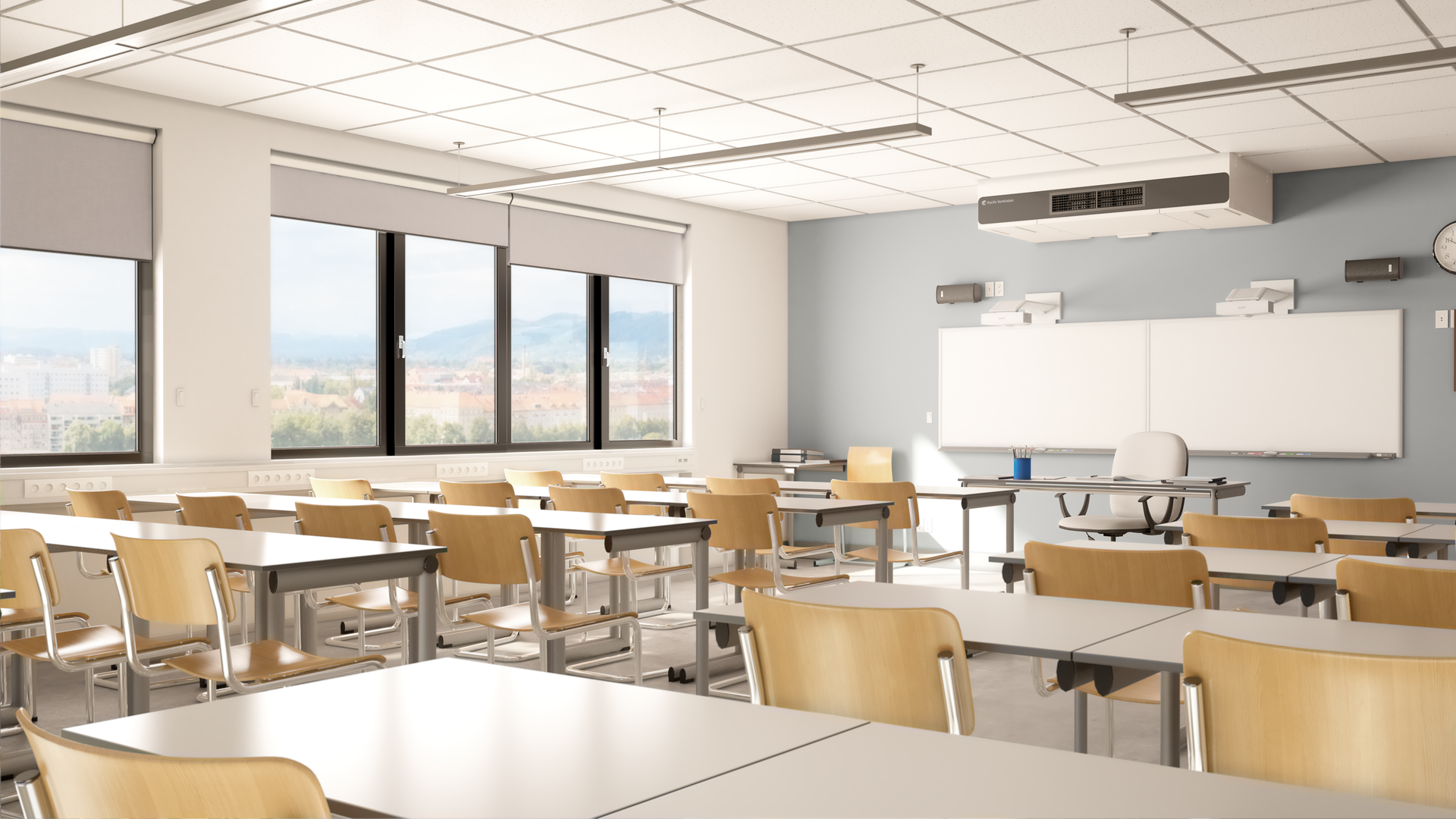

Sense a healthy and comfortable learning environment in your classroomSense Air Handling Units

Keep the fresh air flowing in busy indoor spaces while saving precious floor space.

  • Designed for under-ceiling air blow by using the Coanda effect, allowing an effective fresh air supply throughout the entire space.

  • Silent operation, easy to operate and maintain.

  • Comes with EC motor rotors, a counterflow heat exchanger, and an integrated control system.

  • Easy to install in both new and existing buildings.

Sense, Air Handling Units
Sense, Air Handling Units
Sense, Air Handling Units
Sense, Air Handling Units



Continuous fresh air

Coming with energy-efficient EC motors, adjustable air blow direction, and excellent filtration, Sense units quickly distribute fresh air through indoor spaces.

Silent and discreet

Sense AHUs are an excellent fit for applications where quiet operations are needed and space is limited, but fresh air is important – such as schools and offices.

Simple controls

Each Sense air handling unit comes with built-in controls and HMI touch display so you can easily set operating parameters or select from preset functions. Operation is also possible by app or the cloud.

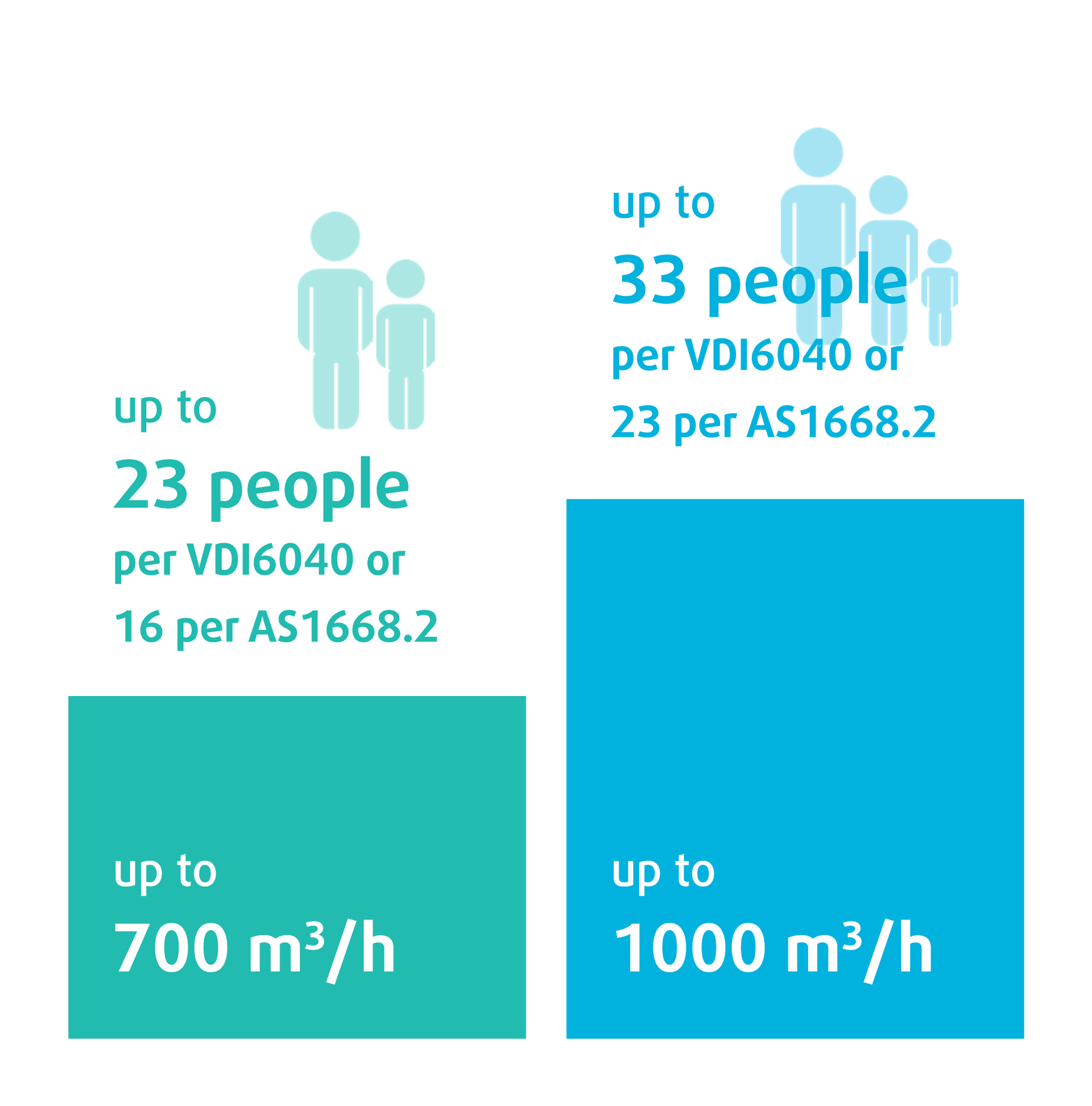

Multiple sizes to fit your spaces

Sense AHUs come in two different sizes to help keep the air well-ventilated depending on the size of your indoor space and the number of people who will be using them.

Download the SENSE brochure

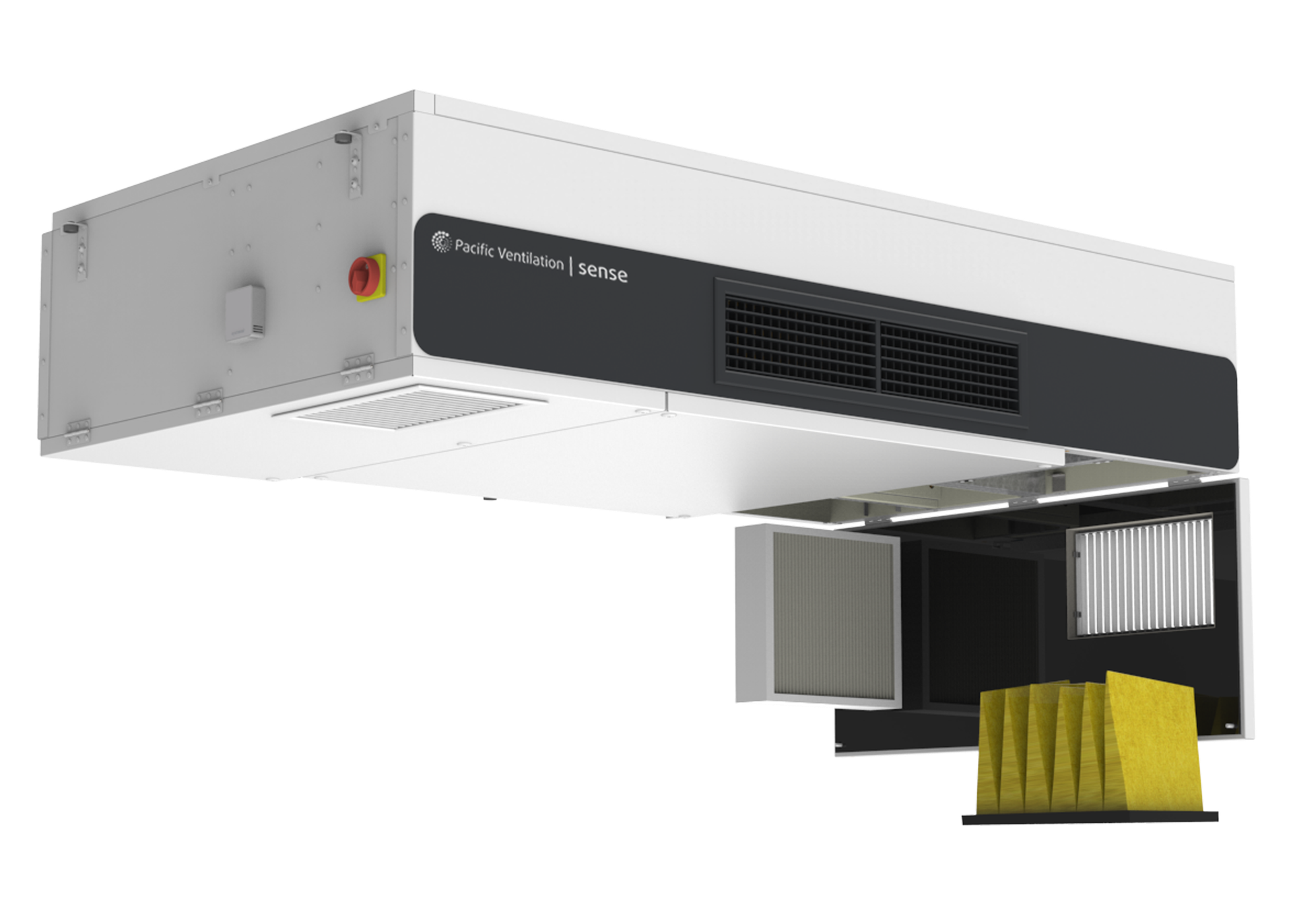

Housing

Frameless housing is made of painted aluminium sheet (RAL 9010) with corrosion protection C4 according to EN ISO 12944-2:2018, and leakage class L2 according to EN ISO 1886:2007.

Fan

The stepless controlled fan is powered by a highly efficient EC motor and can be set at 0-10 V for 0-100% fan speed.

Controller

The powerful controller built into Sense allows you to change and set a wide range of functions and manage the unit via the app or the cloud.

Insulation

Comes with 40 mm insulation made of melamine foam.

Heat exchanger

Aluminum counter flow plate heat exchanger with high heat recovery efficiency (up to 90%). A condensate tray with a Φ28 mm drain connection at the back of the unit is placed under the heat exchanger.

Air damper

Built-in motorized by-pass air damper, regulated by the integrated control system to prevent freezing of the exchanger during the winter – and ensure efficient operations at all times.
