PMF

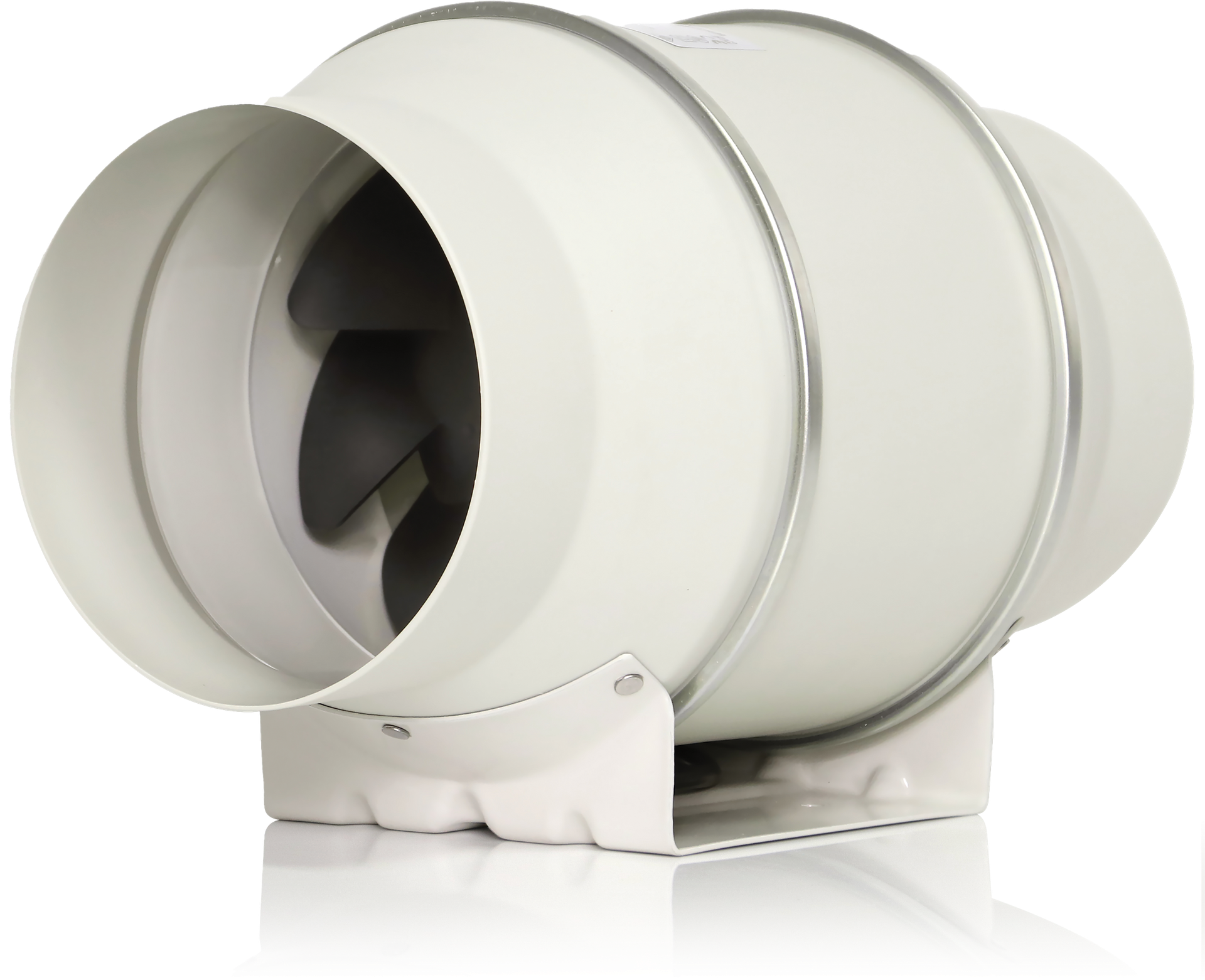

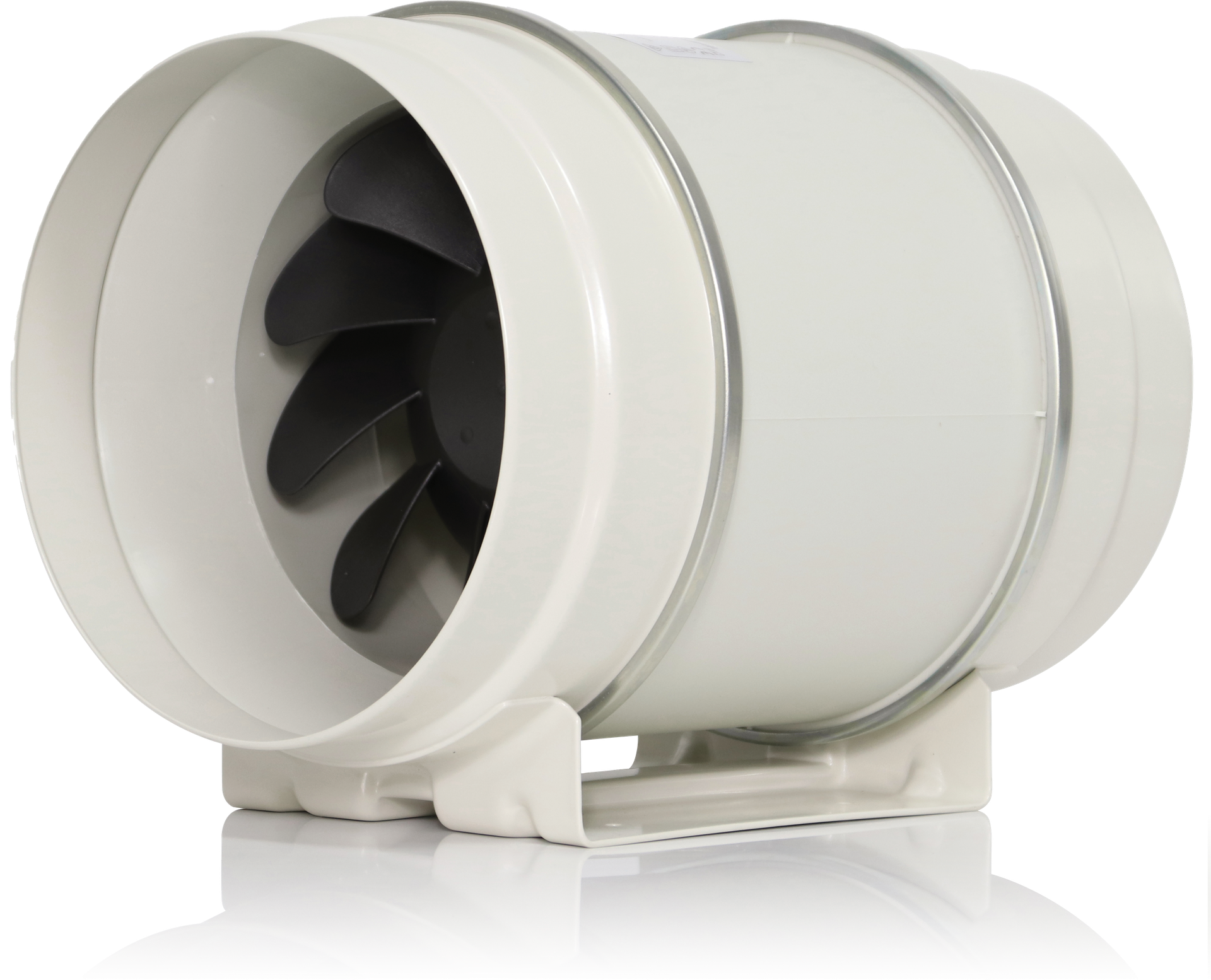

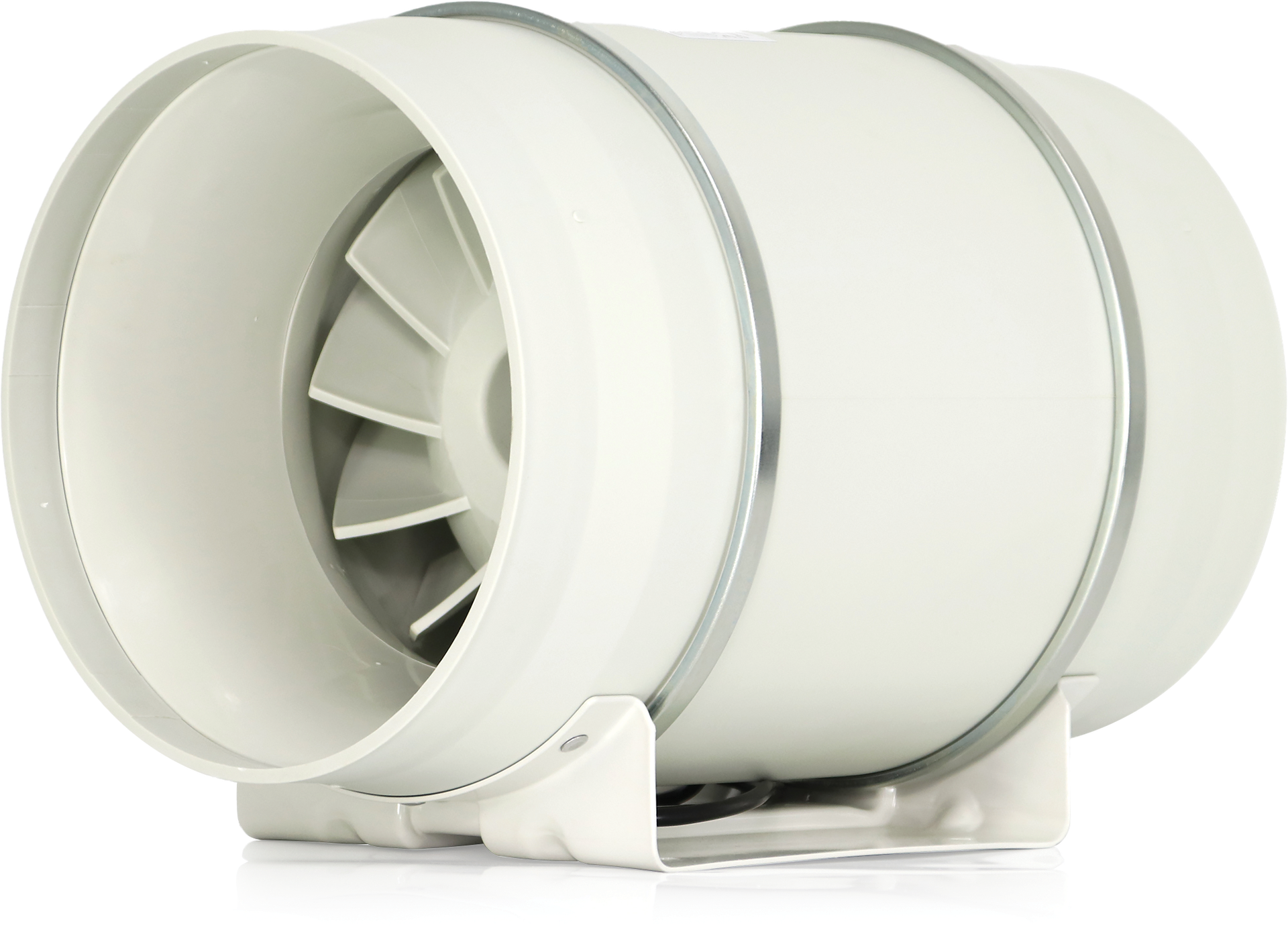

Inline mixed flow fan with efficient EC motor

  • Exceptionally quiet

  • Cost-effective

  • On-board speed control potentiometer

  • Suitable for external 0-10VDC analogue signal for speed control.

  • Can be installed in parallel or in series

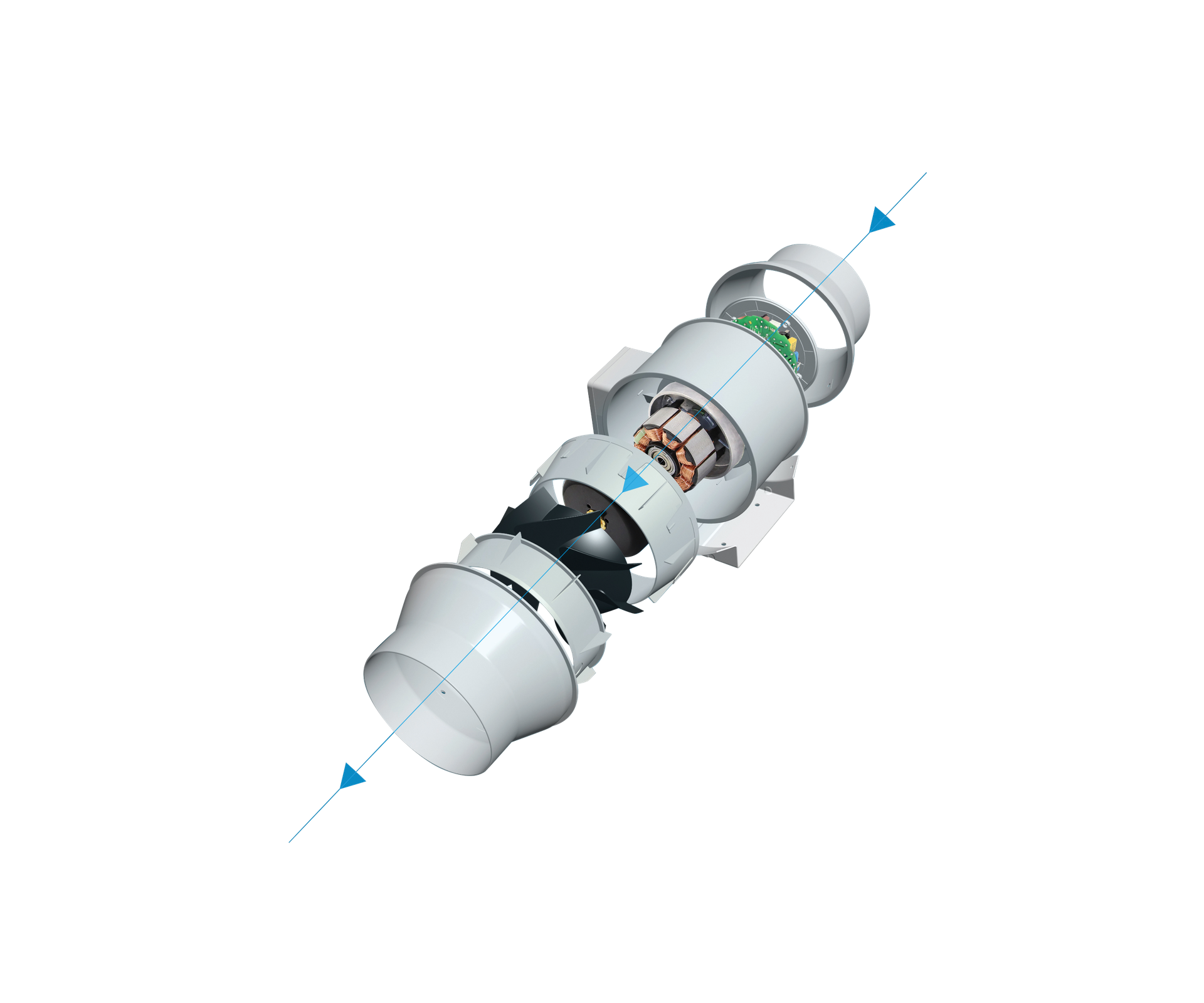

  • Easy motor/impeller dismount system

Construction

The PMF inline fan range is fitted with mixed-flow impellers driven by long-life motors with sealed-for-life bearings. Cases are made from injection moulded polymer.

Speed Controllable

The fan is supplied with an on-board speed control potentiometer for internal speed control. The fan is also suitable for external 0-10VDC analogue signal for speed control.

Testing

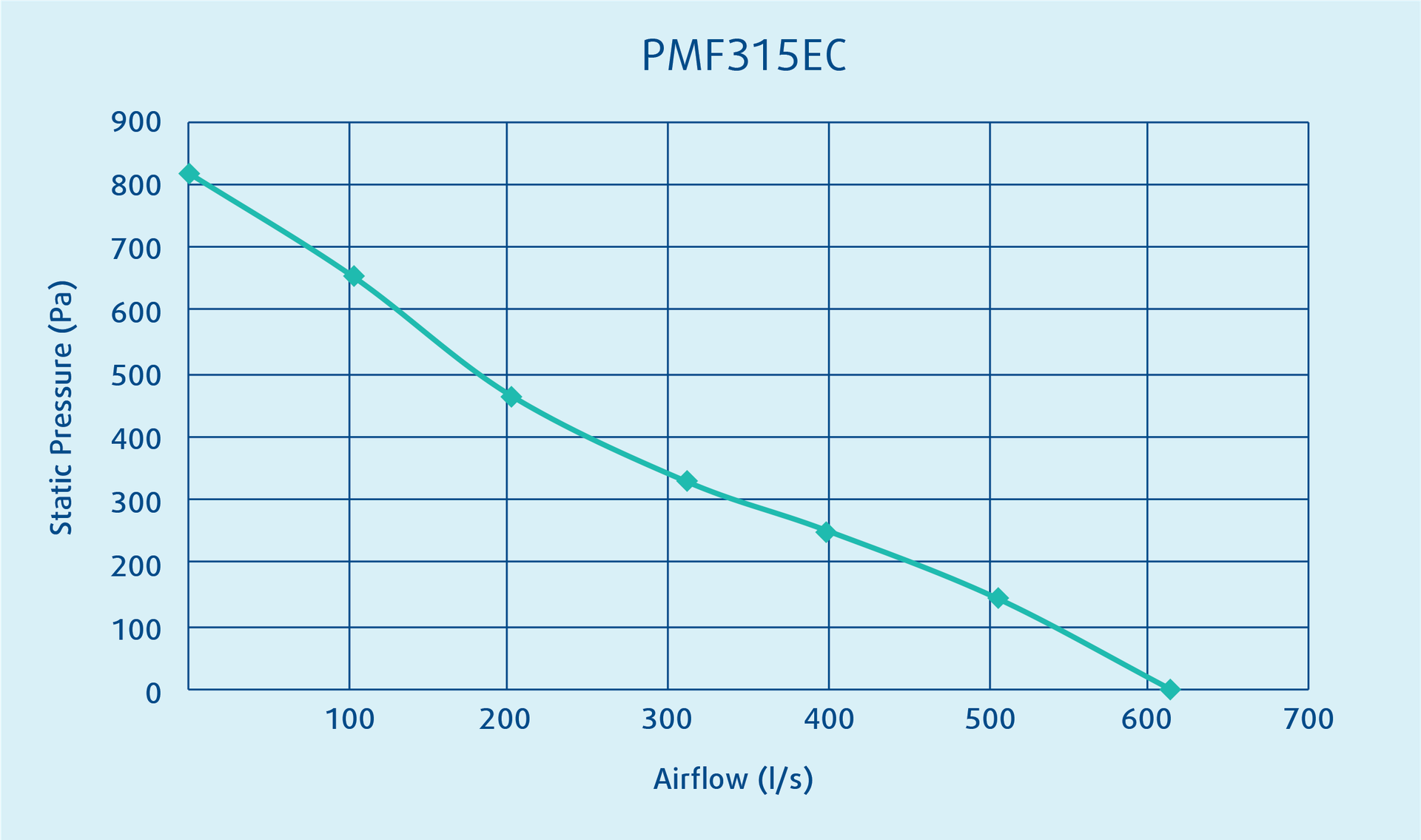

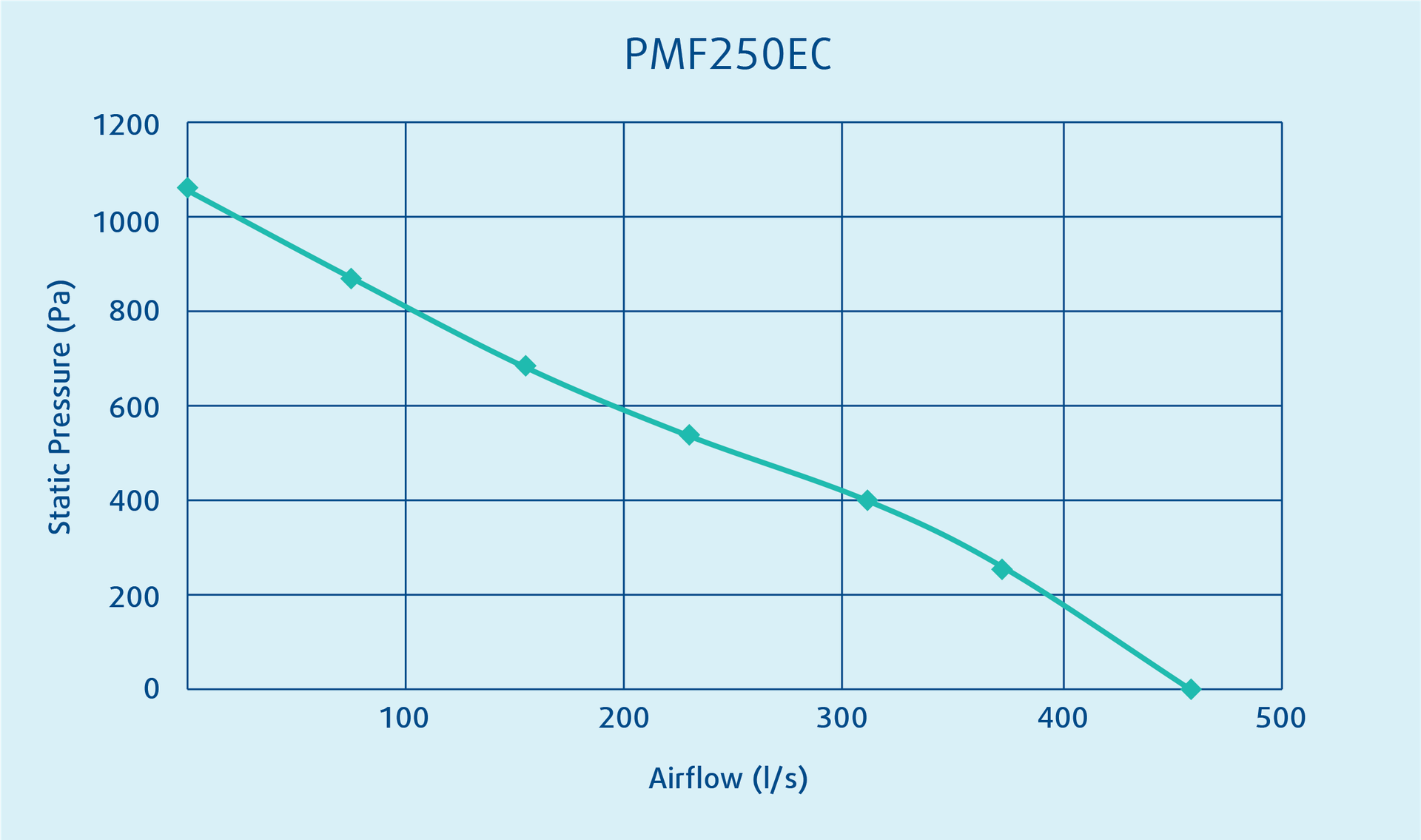

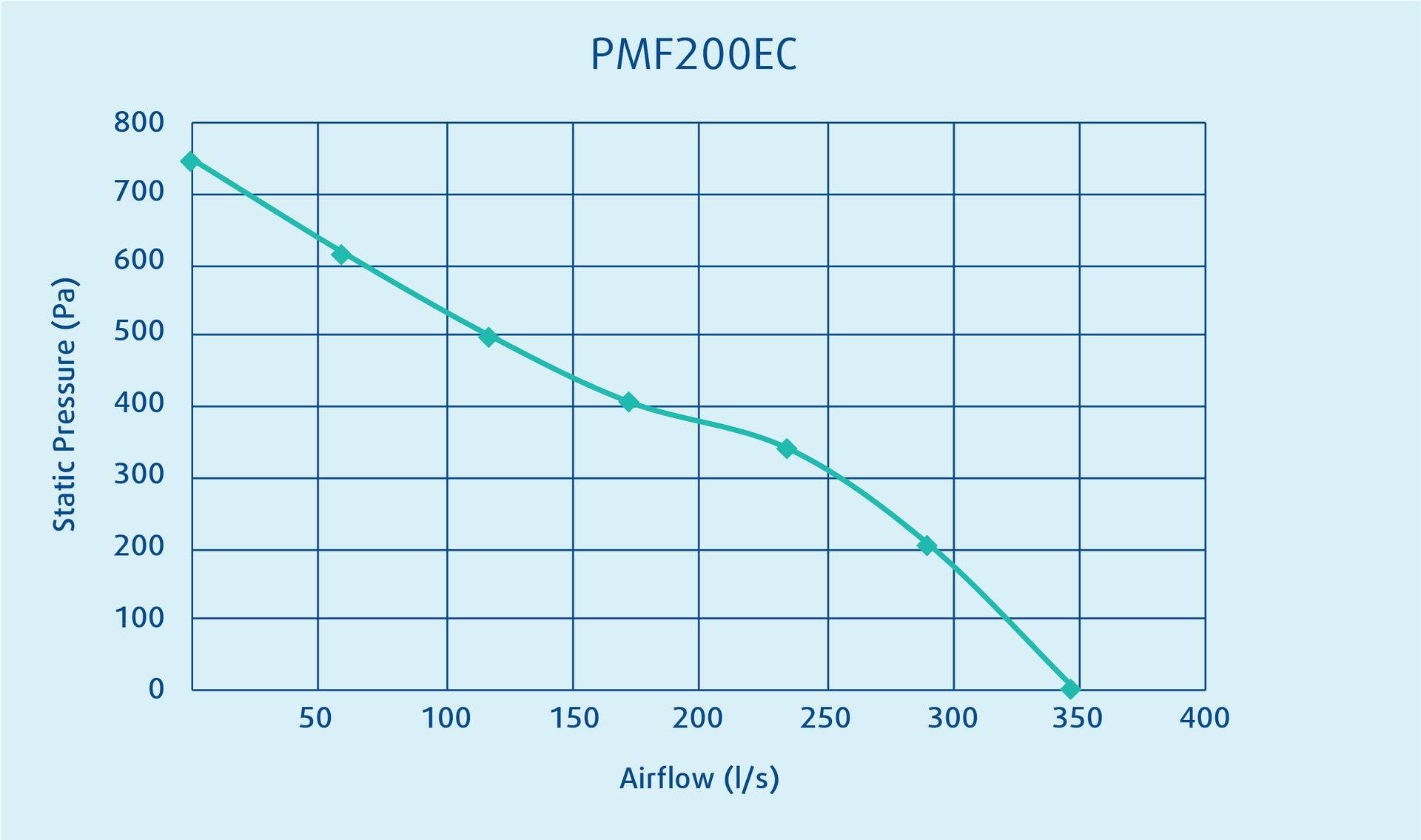

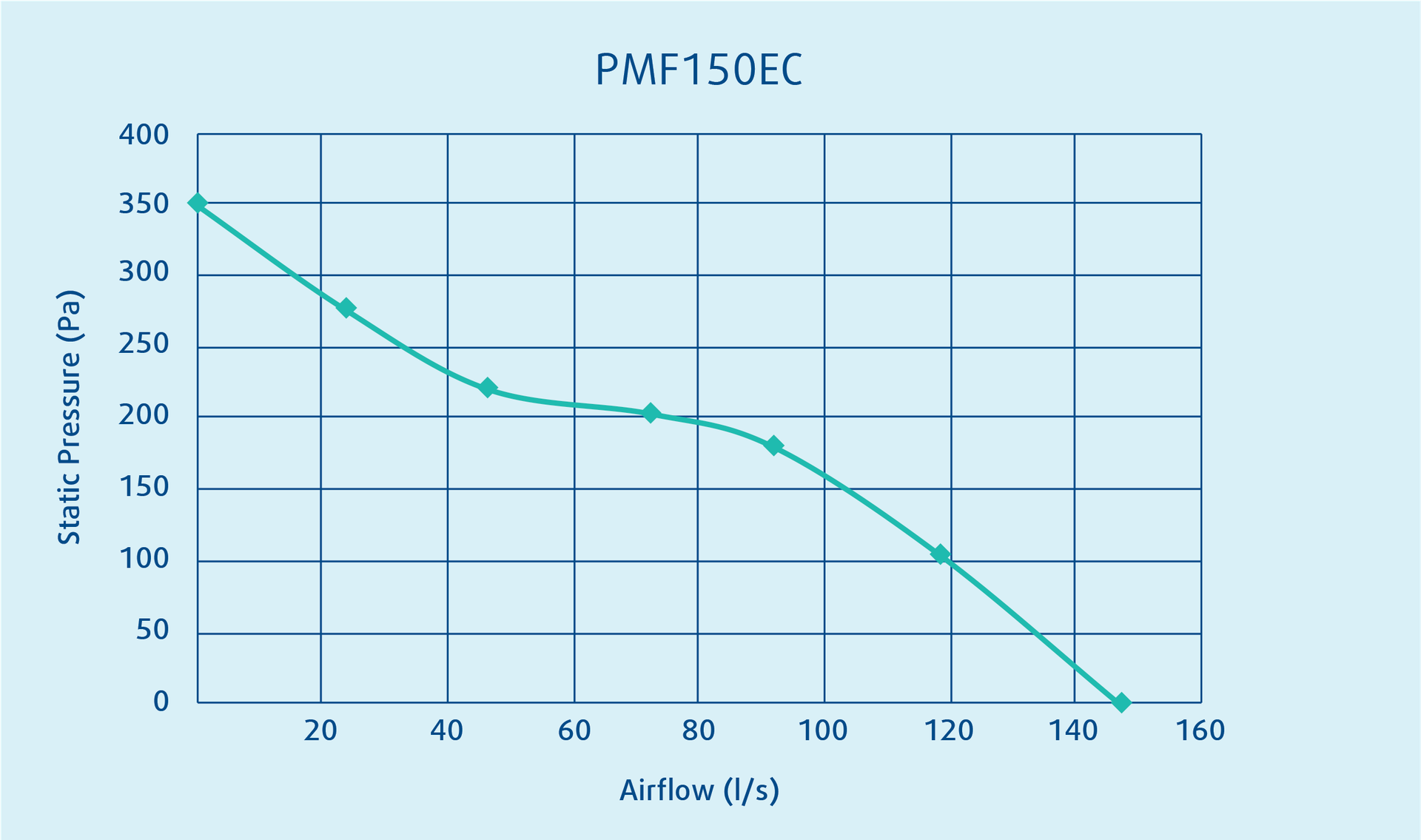

Rated fan performance has been tested in accordance with the following.

  • Performance test to ISO 5801: 2007

  • Sound data has been determined by ISO 13347: 2004

  • Electrical compliances testing to IEC60335.1 and IEC60335.2.80

Wiring

Fans are fitted with flex leads and plugs.

Download the brochure and installation guide here:
