Unlocking new possibilitiesGeniox Go Air Handling Units

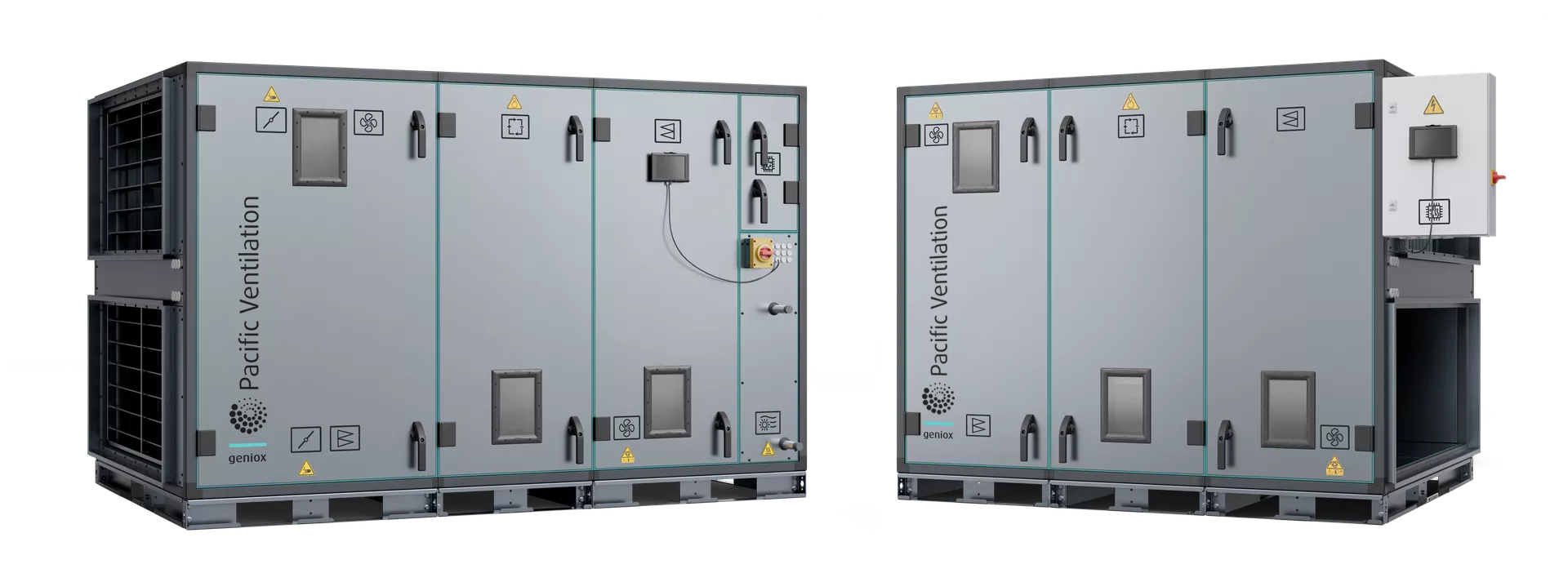

Geniox Go is a preconfigured modular air handling unit delivering excellent performance and energy savings. A wide range with built-in flexibility, easy to transport, ensures an optimal solution for your project.

  • Supports airflow ranges between 2,000-35,000 m³/h (0.55 to 9.72 m³/s).

  • Units are compact and fit easily through standard door frames for quick and easy installation.

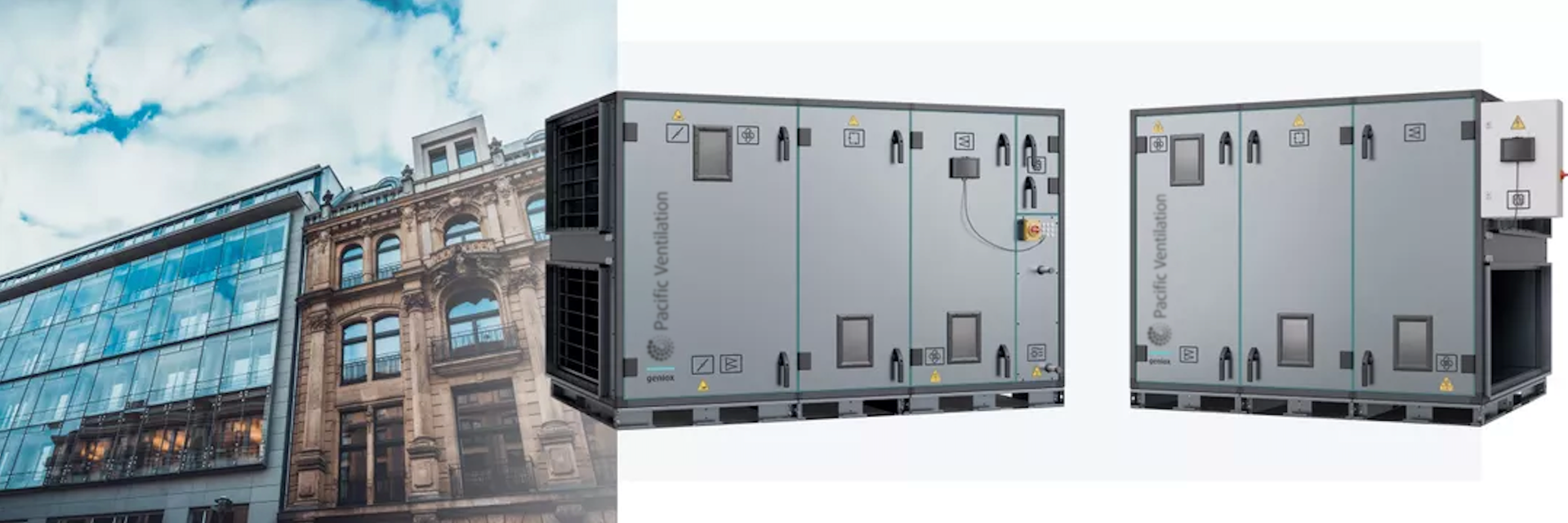

  • Suitable for multiple indoor and outdoor applications including renovations and restorations.

Flexibility

Geniox Go offers you flexibility, as you can customise both internal and external components to suit your project’s specifications.

With external features it possible to minimise section lengths and overall dimensions of the unit.

Minimal energy loss and durable design

The 60 mm thick insulation minimises heat loss and thermal bridges, allowing energy savings, high operating efficiency and sound reduction.

The handles, hinges, and inspection windows are designed exclusively for and by Pacific Ventilation, ensuring a long lifetime.

Shorter lead times

Geniox Go has been preferred for its ease of assembly, with dampers, controls and hydronic heater integrated into one tidy and “ready-to-go” package.

This ensures shorter lead times, and deliveries are on-time.

Easy to install

Geniox Go units are compact, easily fitting through standard door openings of 800 mm. This allows you to quickly and easily install Geniox Go at any stage of your project, saving precious time otherwise spent in taking apart the units or making last-minute changes to floor plans.

Easy to control and operate

Pacific Ventilation Access is a complete control system for air handling units, making advanced technology easily accessible. It allows operators to optimise ventilation performance and create the perfect indoor climate.

Using your air handling unit more effectively will help you reduce energy consumption and save money.

The high-performing Geniox Go air handling units are preconfigured, compact, and incredibly flexible, allowing you to customise them with different internal and external features – from your choice of control cabinet location, heat exchangers to electric or hydronic heaters, combination coils, and more. Currently available in 12 sizes and dimensions.

Delivering the excellence you expect of Pacific Ventilation.

Person holding easy-to-use control panel for Systemair Air Handling Unit

Pacific Ventilation Access – easy to connect, configure and control

  • Pacific Ventilation Access is the common platform for all Geniox Go models. Its intuitive, easy-to-navigate menus will help you create the perfect indoor climate.

  • A plug-and-play concept, reducing installation, set-up, and start-up time, quickly putting you in full control.

  • Modbus communication to all internal components simplifies cabling and wiring inside the unit.

  • Multiple units can be connected to a cloud service for complete overview and accessibility.

Geniox 08 More Flesh 1000px 2 Psd Freigestellt

Eurovent certified and #HygienicByDesign

The entire Geniox Go range is proudly Eurovent certified – this strict third-party testing ensures your air handling units will perform in line with their specifications and expectations after installation.

Geniox air handling units have been designed in line with our innovative #HygienicByDesign initiative to help indoor environments stay pure, clean, and healthy.

Systemair0414 Print

Saves energy for years to come

Geniox Go air handling units have also been designed to save precious energy and keep operating costs low while maximising performance.

From smart insulated panels and doors to mechanically strong internal components, Geniox Go is thermally efficient, airtight, and corrosion resistant and comes with the following classifications:

  • Mechanical strength D1

  • Leakage class L1(M)

  • Thermal bridging class TB2

  • Thermal insulation class T2

  • Corrosion class C5

Geniox Go is also environmentally conscious in its construction. Made of steel, aluminium, copper, and insulation, 95% of a Geniox Go can be fully recycled and reused when decommissioned.

Base frame

The base frame can be mounted in the factory or delivered on-site. You can choose between a full-length base frame or have it divided into sections. There are design options that facilitate work onsite.

Casing
  • Thermal insulation T2

  • Thermal bridging Class TB2

  • Leakage Class L1 (M)

  • Deflection Class D1

  • Flexible selection of materials and surface treatments (pre-painted or ZM310)

  • Panels and doors in corrosion class C5

Directives

Geniox Go is compliant with the following directives:

  • Machinery Directive 2016/42/EC

  • Ecodesign Directive 1253/2014

  • EMC Directive 2014/30/EU

  • Low Voltage Directive 2014/35/EU

  • Pressure Equipment Directive 2014/68/EU

Dampers

The dampers comply with tightness class 4C according to EN 1751:2014. The dampers have counter-rotating aerodynamically shaped damper blades made of aluminium, ensuring a low-pressure loss when open.

Heat pump

The heat pump is an integrated reversible system built into a module section. The system consists of a reversible heat pump equipped with a step-less inverter-driven scroll compressor and a rotary heat exchanger enabling heating and cooling.

Plug fan

We have a wide range of plug fans with several options to give the best performance. The plug fans are direct-driven fans and motors and have an impeller with airfoil blades and rotating diffuses to obtain the highest possible efficiency.

The plug fan has a static efficiency of up to 75%. The plug fan can be supplied with an EC motor (IE5), PM motor (IE4), or AC motor (IE3). The fan impeller and motor are statically and dynamically balanced.

Rotary heat exchanger

The rotary heat exchanger (heating wheel) is highly efficient, with an efficiency of up to 87%.

In each unit size, there are several variants of efficiency to find the most optimised LCC solution in terms of energy use between high recovery and low-pressure drop.

Available in three variants:

  • Standard aluminium rotor

  • Sorption hybrid (Hygroscopic) recovers moisture and gives a good cooling recovery performance.

  • Sorption recovers much more humidity and has a very high performance in cooling recovery, which reduces a lot of the need for active cooling power.

Plate heat exchanger

The plate heat exchanger provides separated airflows preventing odour or moisture transfer between the two airflows.

Available in two variants:

  • Crossflow

  • Counterflow

The crossflow exchanger has an efficiency of up to 85%. The counterflow exchanger has an efficiency of up to 90%.

Run-around coil heat exchangers

The run-around coil heat exchangers are suitable when complete separation of supply and extract air is desired.

A number of different versions are available, and it can provide efficiency of up to 80%.

Heating and cooling coils

The heating coil is used for heating the supply air. The heating can be provided by hot water or condensation of the refrigerant. These coils consist of copper tubes and aluminum fins as standard.

Heating can also be provided by electricity. These coils have stainless steel heating elements and a built-in safety control system.

The cooling coil is used for cooling the supply air. It can be provided by cold water or direct evaporative refrigerant (dx). A cooling coil for evaporation has the liquid distributor placed inside the unit. These coils consist of copper tubes and aluminium fins as standard.

Sound attenuator

The sound attenuator is an absorption attenuator with baffles. It reduces the sound power level from the air handling unit to the duct system. It can be delivered for dry and wet cleaning.

Humidifier

The humidifier is made as a complete unit, including

  • Humidification elements

  • Tray and frame made of stainless steel AISI 304

  • Circulation pump, irrigation regulation valves

  • Overflow

  • Bleed-off regulation valve

  • A float valve for controlling the water supply to the tray

  • Valve for emptying the tray

The humidifier can either be placed in the supply air after a heating coil or used as indirect adiabatic cooling by placing it in the extract air before a heat exchanger.

Panel filter

The panel filter is a basic filter class Coarse 65% (G4 equivalent) according to EN ISO 16890. It is designed on the pleated filter principle.

Bag filter

The bag filter is designed to provide a large filter area.

The filter has a long lifetime and, thus, good overall economy. The filter can be supplied in multiple filter classes and sizes to suit project needs.

Optional Deltri+ virucidal air filters

Virucidal air filters with efficiency ePM1 90%, capable of neutralising or destroying viruses – including SARS-CoV-2, as tested by the Luxembourg Institute of Science and Technology (LIST) and an independent laboratory.

Proven efficiency with Eurovent Certified Performance A+ energy class rating.
